Dual Nozzle Vacuum Design and Basic Structure
The perfume cosmetic medium set machine features a vacuum negative‑pressure self‑priming design, equipped with dual nozzles to improve throughput under light to medium production demands. The machine’s sealing diameter capacity spans 0‑130 mm, suitable for a range of perfume or cosmetic bottle opening sizes. It accommodates bottle heights up to 300 mm, which allows for tall spray bottles or larger decorative perfume containers. The machine weight is about 13 kg, and its physical dimensions are approximately 200 × 320 × 540 mm, making it portable and simple to install on a table or small production bench. Operational air pressure required is 0.4‑0.6 MPa, ensuring stable vacuum sealing and nozzle filling. These design and structural features make the dual nozzle vacuum unit version of the perfume cosmetic medium set machine appropriate for manufacturers who need flexibility in bottle sizes without heavy machinery.
Performance, Output Speed, and Adjustability
In terms of production speed, this unit can fill and cap (seal) between 5‑40 bottles per minute, depending on bottle size, nozzle fit, and operator finesse. The dual nozzles help increase throughput when two containers can be processed simultaneously. The machine is purely pneumatic, meaning filling and sealing actions are powered by air pressure rather than electric motors for those parts, which simplifies maintenance and reduces potential mechanical failures. There are height adjustment features for bottles: the first round (base) height can be adjusted and then fixed, enabling different bottle heights up to 300 mm to be used. Also includes a triangular piece fixture to hold and fix bottles adjusted to size, yielding stable alignment during sealing. These functions ensure that the perfume cosmetic medium set machine performs reliably with moderate speed and consistent sealing quality.
Application Fields, Material Compatibility, and Safety Features
This machine is applied mainly in the cosmetics industry (perfume bottles, essential oil bottles, etc.) and in pharmaceutical applications (oral spray bottles, nasal spray bottles) where sealing after filling is crucial. It also supports glass, plastic, and metal containers (as implied by the “container material” compatibility in the perfume filling machine category). The sealing uses brand cylinder, thick cylinder, two‑way sealing structure to prevent air leakage. A foot pedal gland allows one‑step pressing, facilitating user control in sealing. Because of vacuum self‑priming design, after container inversion, liquid will not flow out, provided the container diameter and surface stress conditions are met (i.e., the liquid surface expansion stress exceeds static pressure). This reduces leakage risk. As part of safety, the pneumatic system ensures no electricity exposure in some parts, and the simple structure helps with cleaning. For medium set production, this dual nozzle vacuum unit offers both flexibility and manageable safety.
|
Machine pressure：
|
0.4-0.6Mpa
|
|
Sealing diameter ：
|
0-130mm
|
|
Applicable bottle height：
|
0-300mm
|
|
Production speed：
|
5-40 sticks /min
|
|
Machine weight：
|
13kg
|
|
Machine dimension：
|
200mm*320mm*540mm
|
Apply:
Cosmetics industry: perfume bottles, essential oil bottles, etc.
Pharmaceutical industry: oral spray bottle, nasal spray bottle, etc.
A Complete packaging Solution

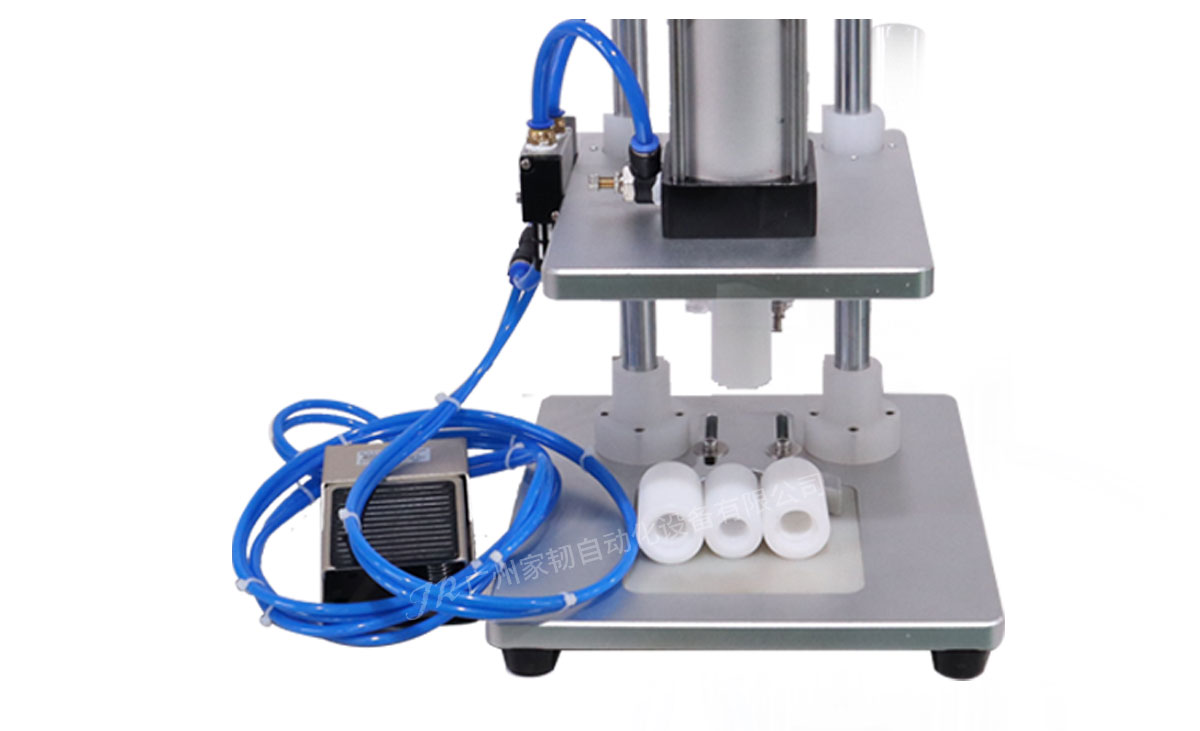

Perfume comestic medium set machine detail
1、Pure pneumatic operation, simple operation, time-saving and labor-saving

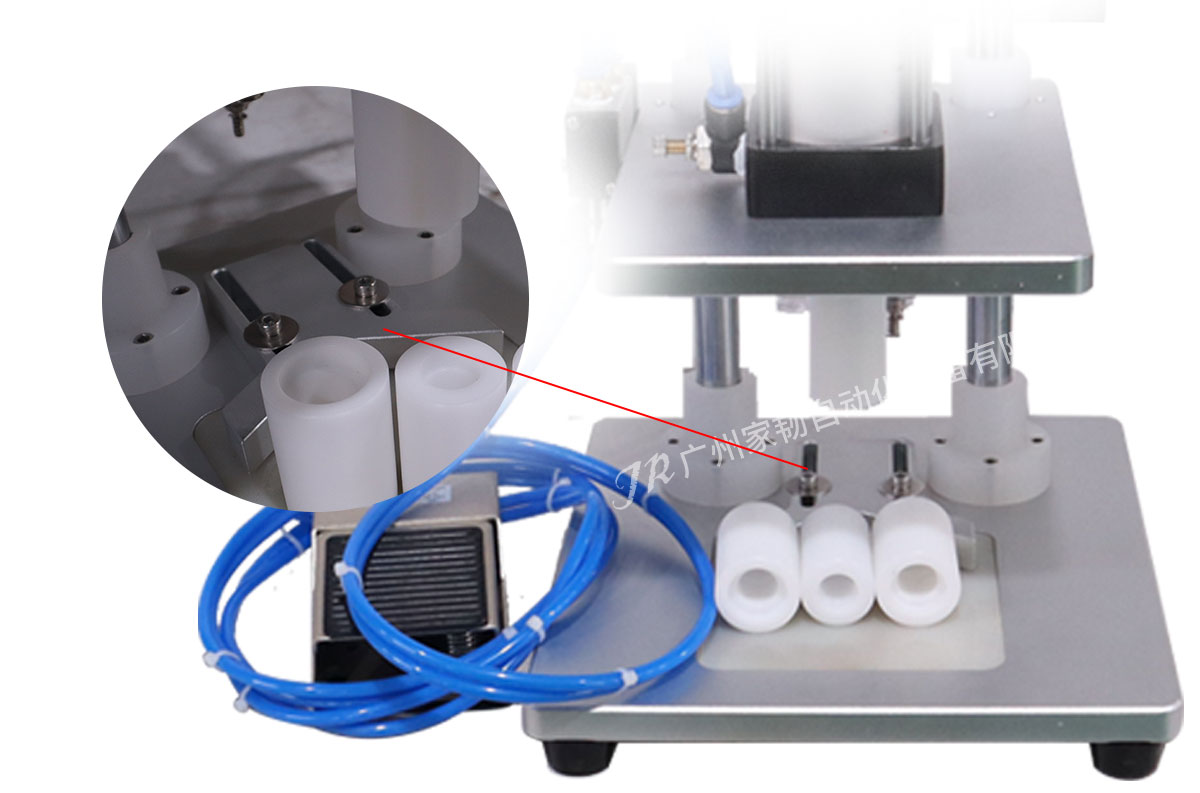

2、Triangulation piece, fixing the bottle, can be adjusted according to the size of the bottle

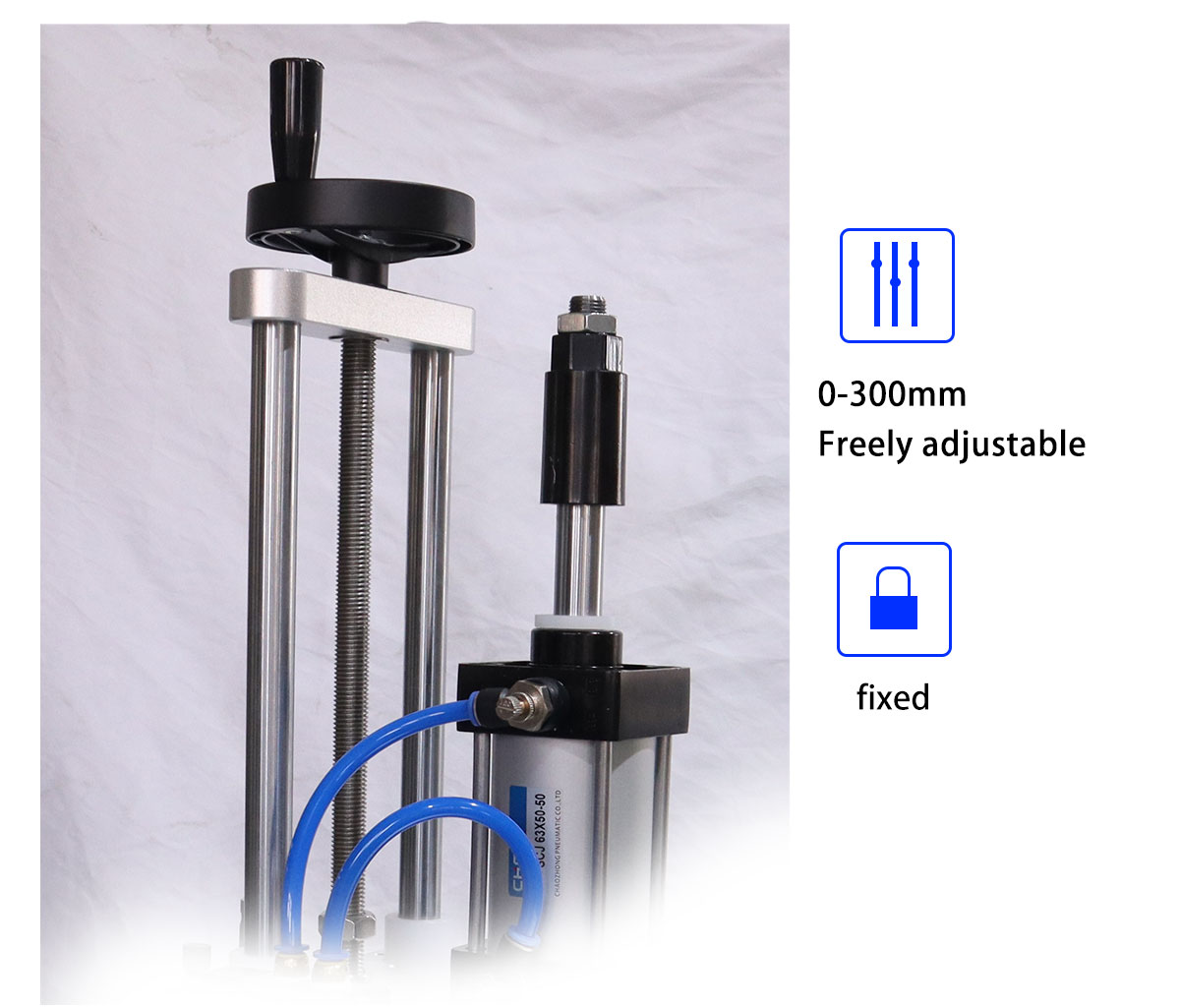

3、The desired height of the bottle can be adjusted by the first round and can be fixed

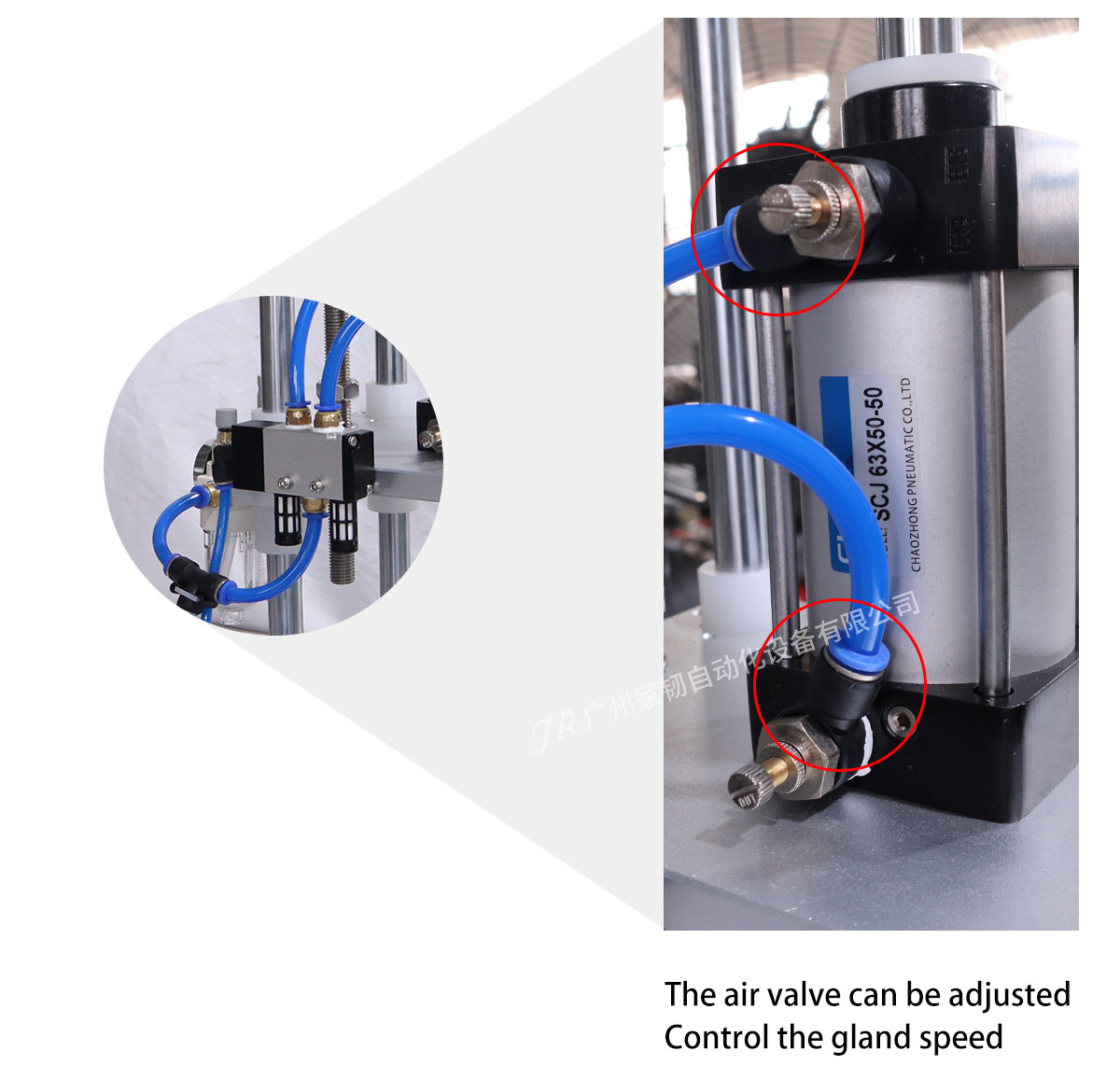

4、Brand cylinder, thick cylinder, good sealing, no air leakage, two-way sealing structure

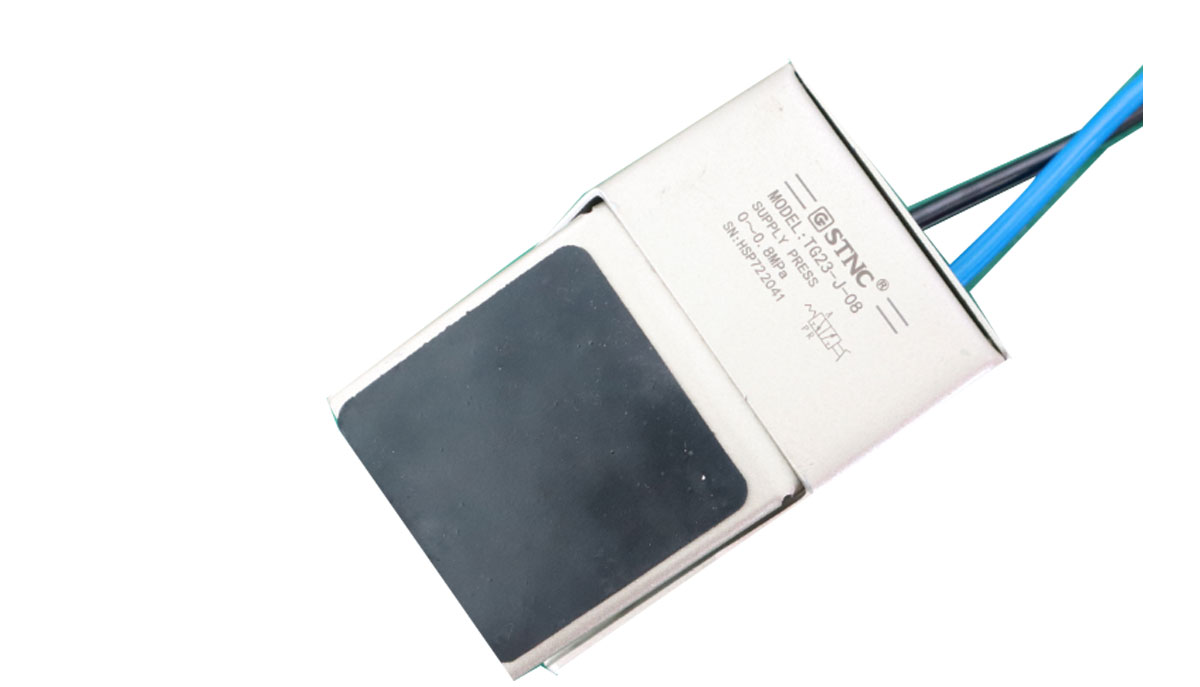

5、Foot pedal gland, one step and one press, convenient and fast
Perfume comestic filling machine
For more detailed equipment parameters, please consult customer service
| machine |
 |
 |
 |
| Model |
GZJR-SXG01 |
GZJR-QXZ01 |
GZJR-SXZ01 |
|
Machine voltage：
|
AC220V 50/60HZ
|
AC220V 50/60HZ |
/ |
|
Machine power：
|
120W
|
/ |
/ |
|
Filling range:
|
2-1000ml
|
/ |
/ |
|
Filling speed:
|
20-40 sticks /min
|
Depending on proficiency level |
20-40 sticks /min
|
|
packaging diameter
|
/
|
0-130mm(customizable)
|
13mm-20mm
|
| Maximum bottle height |
/
|
≤300mm |
≤16cm |
|
Filling precision：
|
liquid surface ±1mm
|
/ |
/ |
|
Machine weight：
|
50KG
|
13KG |
7KG |
|
Machine dimension：
|
720*500*1270mm
|
260mm*250mm*620mm
|
250*210*440mm |
|
Quantity of filling heads：
|
4
|
/ |
/ |
|
Filling heads：
|
external diameter 8mm，internal diameter 6mm（outer）
external diameter 4mm，internal diameter 2mm（inter）
|
/ |
/ |
|
function
|
Liquid filling
|
sealing（One machine for two purposes） |
