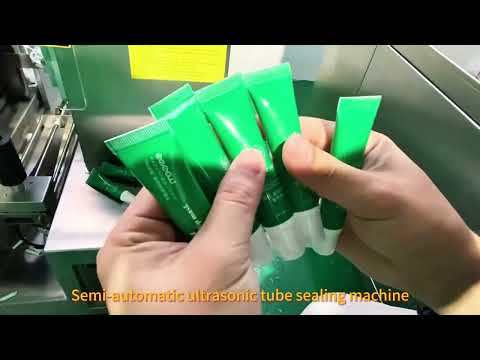

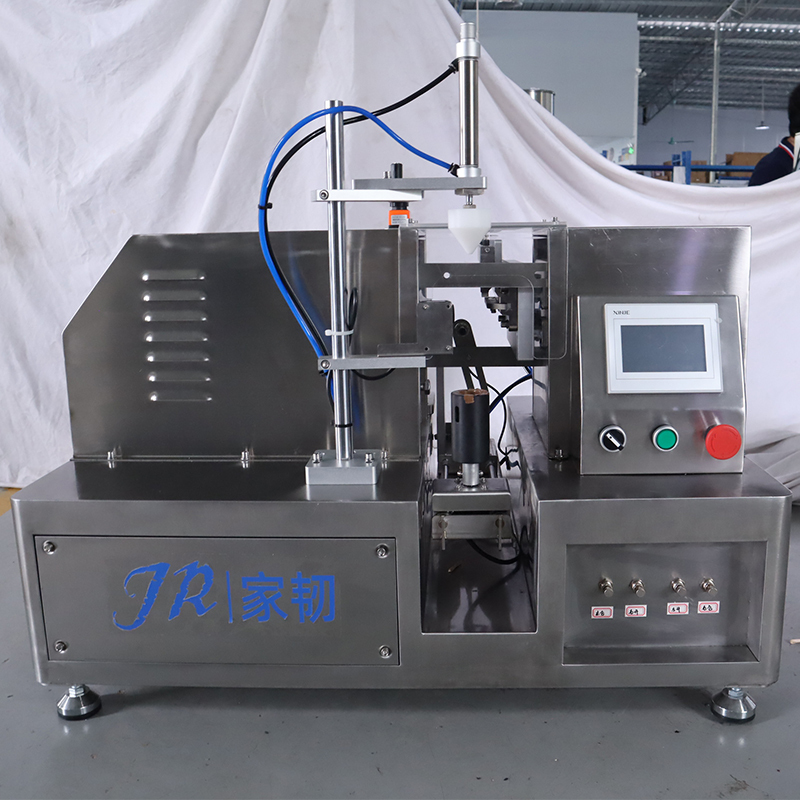

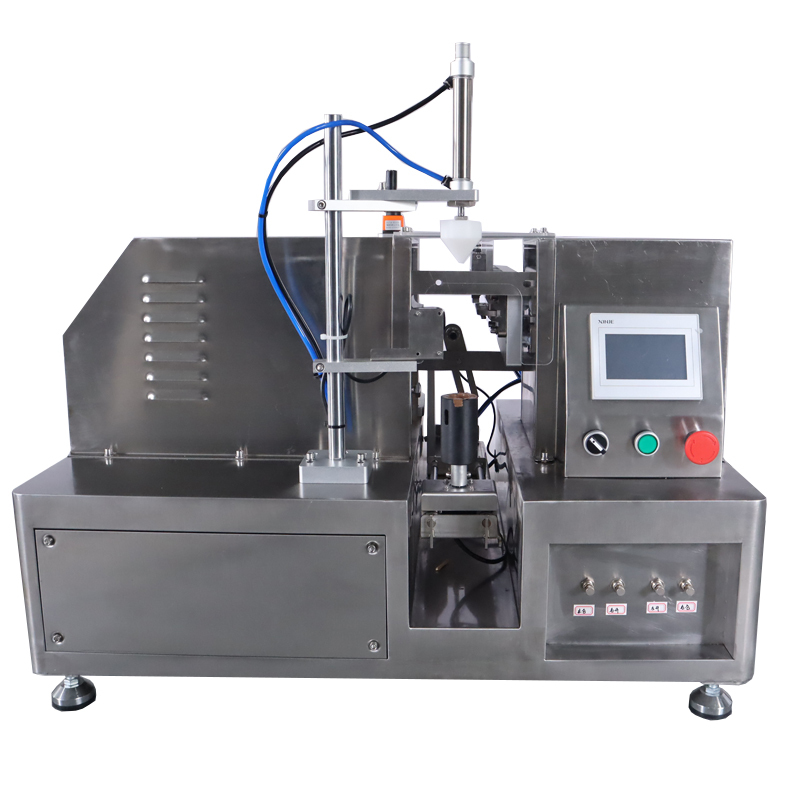

Semi-automatic ultrasonic tube sealing machine

Features of Ultrasonic Sealing Machine：

1.Extensional organization of the machine is made of aluminium alloy and stainless steel.
2.The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.
3.The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.
4.It's with the function of overload protection, phase difference protection, and power-fail protection
5.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.
6.It's with the function of automatically cutting.
7.To seal different products, just replace a mold
8.Filling can be selected to achieve the integration of filling and sealing

Ultrasonic tail sealing machine related parameters：

Production flow chart of ultrasonic sealing machine:

Manual intubation - benchmarking - pressure tube - ultrasonic sealing  -tail cutting - products

This equipment is suitable for sealing the tail of plastic pipe andaluminum plastic pipe
Date of coding can be customized according to customer needs

Semi-automatic ultrasonic tail sealing machine detail：

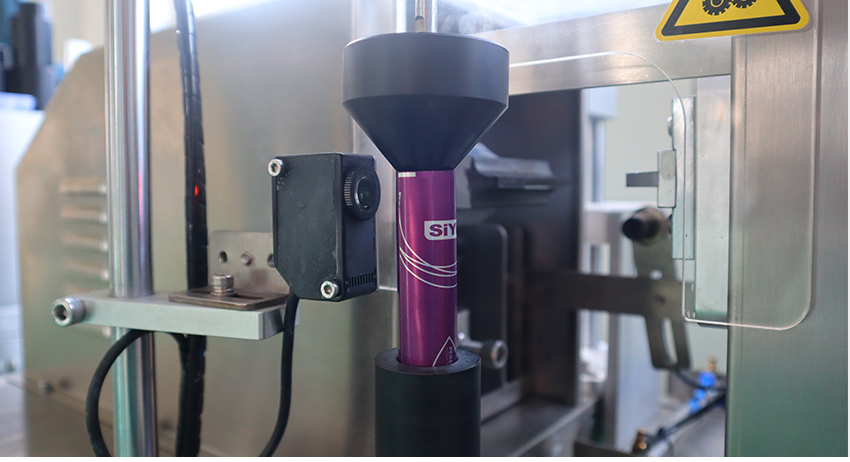

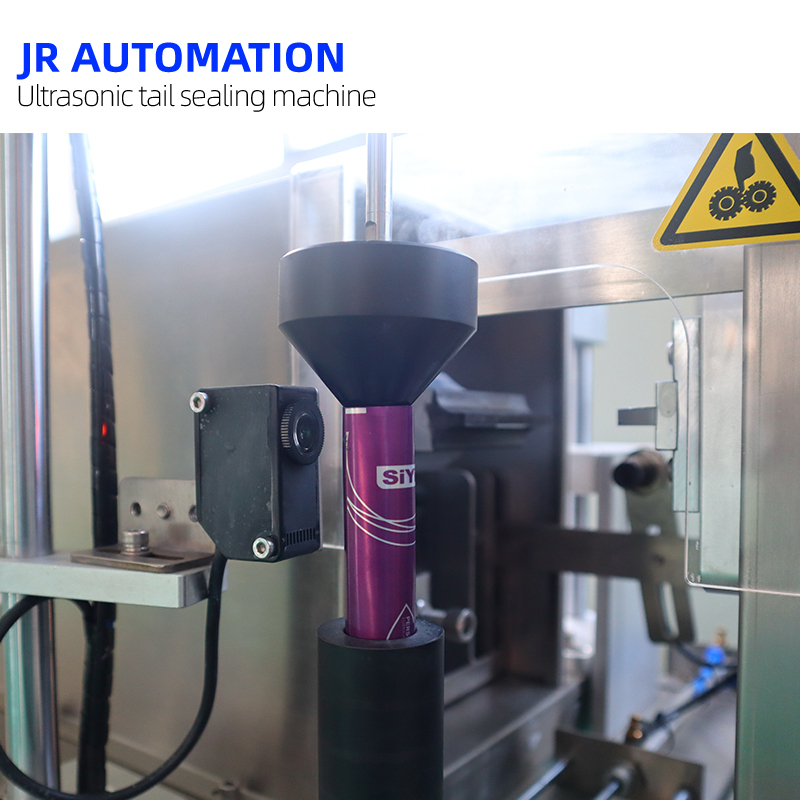

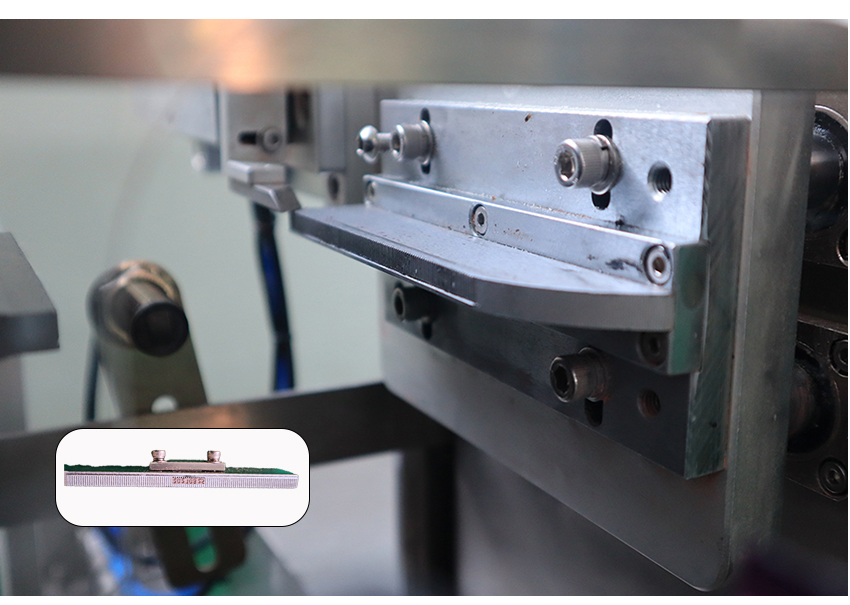

1、Automatic indexing
Manual pipe release, automatic standard pressure pipe


2、The production date is coded and customized
The production date can be customized according to customer requirements

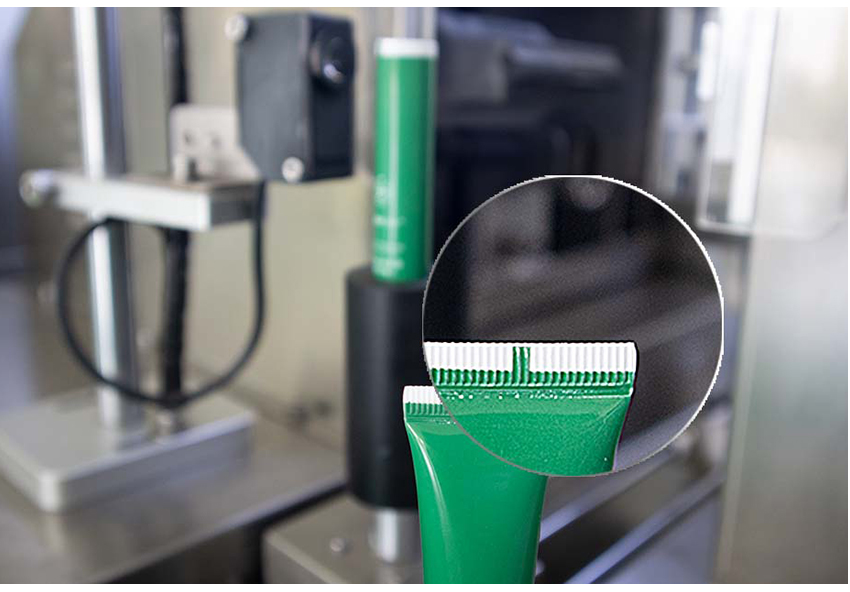

3、Ultrasonic tail capping
The tail is neat and beautiful

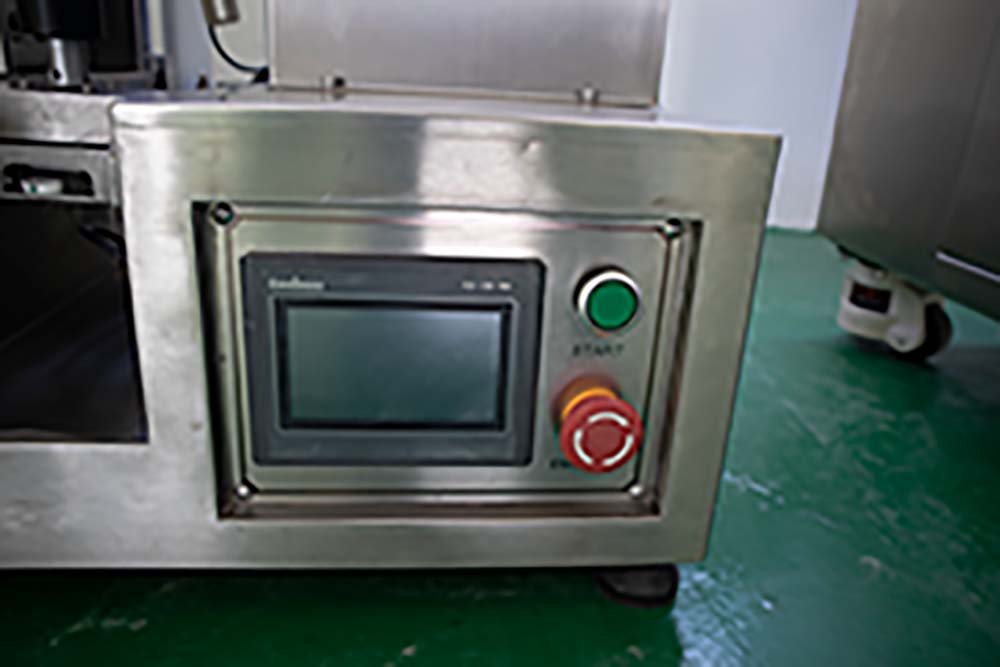

3、Touchscreen design
Multi-language settings


Applytion:
It is suitable for filling and sealing of plastic pipes, PE pipes and aluminum-plastic pipes in cosmetics, medicine, food, chemical and other fields
The following products are suitable for the production of this equipment:

Plastic and Composite Tube


Aluminum-Plastic Tube

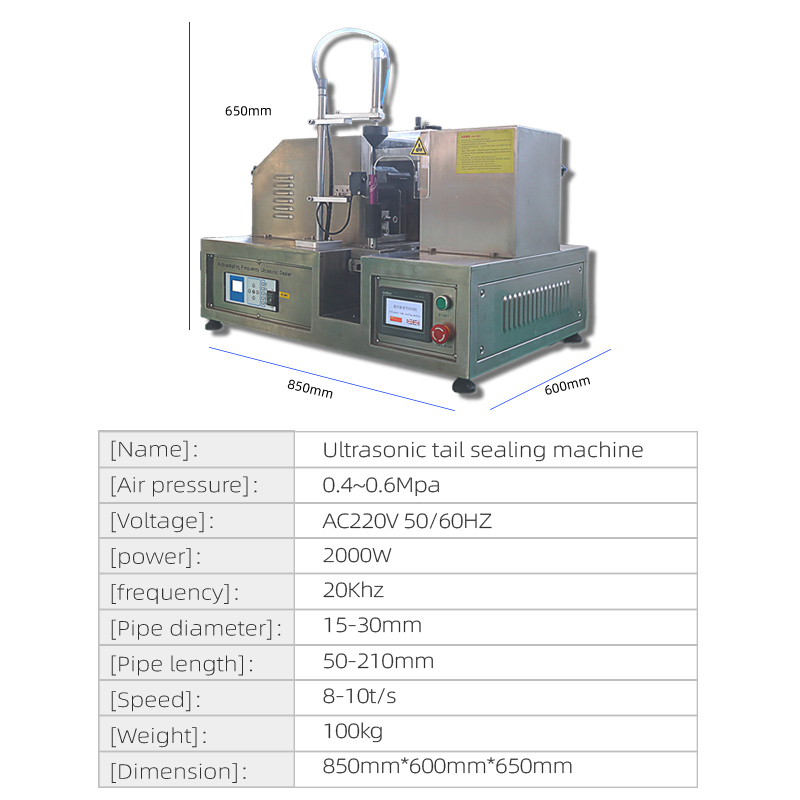

 ultrasonic tail sealing machine :

Machine
Model	GZJR-CF01	GZJR-CF02	GZJR-CF03
Ultrasonic frequency：	20Khz	20Khz	2000KW
Machine voltage：	AC380V  50/60HZ	AC220V  50/60HZ	AC220V  50/60HZ
Machine power：	2000KW	2.6KW	2000KW
Applicable tube diameter：	50-210mm	13-50mm	10-50mm
Applicable tube height：	10-50mm	50-250mm	50-210mm
Filling range：	/	/	5-60ml 10-120ml 25-250ml
Filling velocity：	8 sticks /min	22-25 sticks /min	8 sticks /min
Machine weight：	100kg	304kg	100kg
Machine dimension：	850mm*600mm*650mm	200mm*900mm*1350mm	850mm*600mm*650mm

Transport Packing Diagram:


Customer Case:
Our products have been used by more than 2000 users at home and abroad, won a good reputation, by the majority of users trust! Customers involved in cosmetics, medicine, food, chemical and other fields.
For example: Guangzhou Toyangli Biotechnology Co., LTD., Kefu Medical Technology Co., LTD., Zhongyan (Guangzhou) Cosmetics Co., LTD., Guangdong Dezhou Medical Equipment Co., LTD., Badisu (Guangxi) Biotechnology Co., LTD., Shijiazhuang Songshui Biomedicine Co., LTD., Beijing Nuokunda Pharmaceutical Co., LTD


Company Profile:
Guangzhou Jiren Automation Equipment Co., LTD., focusing on the filling machine industry for 15 years. Provide low, medium and high-end filling equipment source factory, specializing in the production of daily chemical/chemical filling machinery research and development and manufacturing, with more than 20 core patents of filling machines. The main products are hose filling and sealing machine series, aluminum tube filling and folding machine series, ultrasonic filling and sealing machine series, gynecological gel filling machine series, Xilin bottle filling production line, liquid filling production line series, paste filling production line series and other packaging equipment. It is mainly used in cosmetics, medicine, food, chemical and other fields. At present, the factory has a workshop of 3850 square meters, with 20 production equipment and a monthly production capacity of 100. Products sell well in China, exported to Europe, America, Southeast Asia and other countries and regions. 15 professional R&D team with 10 years of experience. Can be customized according to customer's product requirements, to provide customers with quality and comprehensive service. The factory has a stock of 5 million semi-finished products, accessories, finished products, etc., the spot is shipped in 24 hours, and the customized equipment is generally delivered in 3-5 days. Factory qualification is complete, quality assurance, we uphold the (customer first, reliable service, quality first, price satisfaction) concept, warmly welcome you to consult and visit.

Qualifications:

OUR SERVICE:

1.Professional sales team, communicate your needs in time
2. During the production of the equipment, we will regularly shoot videos to inform the corresponding progress
3. Corresponding wearing parts, English operation manual and operation video are randomly distributed
4.Professional after-sales maintenance engineers, 24 hours a day to solve your after-sales problems
5. If there is a demand, we can also provide door-to-door service, but the corresponding fee shall be charged.

FAQ：

Q: Are you trading company or manufacturer ?

A:Yes, We are factory, all machine is made by ourself ,we have a professional production and processing team and after-sales team

Q: Why choose your company?

Answer: We can provide customized services according to customer requirements. We also have a professional R&D team and a quick response sales team. Strictly control every step of the quality assurance and quality control system process.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
